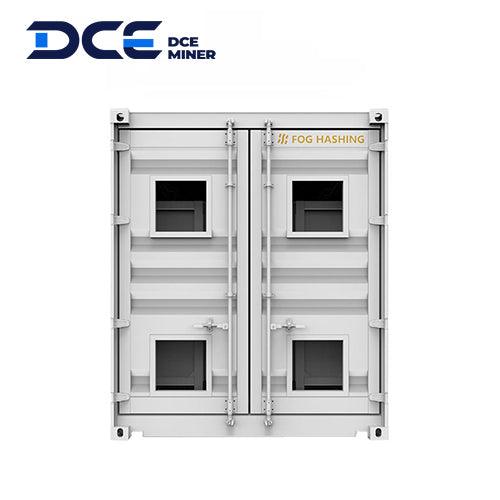

Immersion Cooling Container BC40 PRO
Immersion Cooling Container BC40 PRO
Блок питания включен
Гарантия производителя
Пожалуйста, уточните текущий запас и цены в службе поддержки клиентов перед размещением заказа, так как цены могут колебаться.
Не удалось загрузить сведения о доступности самовывоза
- USD
- USDT(TRC 20)
- KAS
- BTC
- ETH
- LTC
- DOGE
- USDC(ERC20)
The BC40 MEGA is a high-density immersion cooling design with the goal of providing a full-stack solution for large-scale mining customers. Support up to 384 miners (AntMiner S19 XP) or 480 miners (WhatsMiner M60 M50) inside.
Immersion Cooling for Crypto Mining
——Provide from Home Mining to Large-scale Mining Solutions
IMMERSION COOLING CONTAINER BC40 ——Designed for large-scale minin
Design Advantages
Flexible options for different scales
From 168kW to 2.02MW cooling capacity.
Customization support for clients to choose configurations according to requirements.
Mobile, integrated and expandable.
Extremely low O&M costs
The Single-loop design allows to shut down each immersion tank separately, to realize minimal downtime.
Reliable and easy-to-maintain piping design.
All-round intelligent management system
Integrates 3 management systems: cooling control, power monitoring and security monitoring systems.
Ultimate cooling capacity with redundancy design
Either close water towers or dry coolers is supported, with extra redundancy of cooling capacity to adapt to a variety of extreme climates.
Solution Features
- Supports up to 2.6MW power load.Supports up to 384x Antminer S19s or 480x Whatsminer M30/M50s.
- Single-loop, easy to deploy and expand.
- Integrates remote management to monitor current, voltage, and cooling system status.
- Modular design, self-contained operation with minimal maintenance cost.
- External cooling supports either dry coolers or water cooling towers.
- All-round remote security monitoring, CCTV, ambient temperature, smoke sensor, etc.
- Supports heat recovery utilization Electrical certification UL/CSA/CE ISO standard container.
-
Support customization
The BC40 MEGA supports customized external cooling options based on the deployment environment and requirements.
geographic location | Ambient temperature Humidity | source of water | overclocking range | Run the type of mining machine
Solution 1: BC40 +Closed Water Tower
Suitable for areas with abundant water resources.
Solution2: BC40 +Dry Cooler
Suitable for dry and water shortage areas.
Specifications
– BASIC
PRO
Dimensions(L*W*H)(mm) 12192*2438*2896 12192*2438*2896 Shipping Weight(T) 13 13 Operating Weight(T) 23 23 Coolant Capacity (L) 14000 14000 Cycle Mode Single loop Single loop Miner Capacity 384 S19/M50 384 S19/M50 Tank Quantity B24 Tank*16 B24 Tank*16 Operating Temperature(℃) -25°C ~55℃ -25°C ~55℃ Electrical Performance (- /✓ optional/standard)
– BASIC
PRO
Input Voltage and Frequency 3-phase 350-480V 50/60Hz 3-phase 350-480V 50/60Hz Max Power Load (kW) 1693 2822 Output Voltage and Frequency Single-phase 200-277V 50/60Hz Single-phase 200-277V 50/60Hz Safety Certification CE/UL CE/UL Operating Power(kW) 100 134 Power Distribution Cabinets(A) 1200Ax1 *2 1000Ax2 *2 PDU Smart PDU * 16
Smart PDU * 32
Inlet Cable The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x1 *2L2 4-wires cable 3/0AWG(85mm x4) x1 *2L3 4-wires cable 3/0AWG(85mm x4) x1 *2N 4-wires cable 3/0AWG(85mm x4) x1 *2PE 1-wire cable 3/0AWG(85mm) x1 *2 The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase:L1 4-wires cable 3/0AWG(85mm x4) x2 *2L2 4-wires cable 3/0AWG(85mm x4) x2 *2L3 4-wires cable 3/0AWG(85mm x4) x2 *2N 4-wires cable 3/0AWG(85mm x4) x2 *2PE 1-wire cable 3/0AWG(85mm) x2 *2 Smart Meter – ✓ Integrated Wiring ✓ ✓ Network ✓ ✓ UPS – – SPD ✓ ✓ Cooling Capacity
– BASIC
PRO
Cooling Capacity(kW) 1440 1920 Cooling Type Closed water cooling tower
or Dry cooler
Closed water cooling tower
or Dry cooler
Inlet Temperature(℃) 45 45 Outlet Temperature(℃) 60 60 Design Reference Temperature (℃) 35 35 Note: About the transportation of liquid cooling equipment
